Project

Engineering, Procurement and Construction of
Shell Wharf 8 at Pulau Bukom

Completed on November 2004

The rebuilding of Wharf 8 was under Engineering, Procurement & Construction form of contract. The new wharf is capable of handling ships from T90 (5,100 Displacement Ton, 90m Length x 14.8m Width x 5.7m Draft) to T275 (180,000 Displacement Ton, 275m Length x 50m Width x 17.3m Draft).

The works consist of the demolition of existing approach-way, dredging of seabed to – 17.3m PBCD and supply & installation of 145 nos. of steel pipe piles. As this new wharf 8 was built at the same location of the old wharf, all the pile positions were designed to avoid the existing old piles. The wharf 8’s main deck (55m x 30m) was constructed with 6nos. of pre-cast slabs, each weighing more than 220ton. 2,000m³ of reinforced concrete was used to cast the main deck and dolphins. 2 nos. of the existing dolphins were modified and strengthened and 3 additional dolphins were added to accommodate the larger ships berthing at the new wharf. The equipment on the deck includes 7 nos. of loading arms, a fire monitor, gangway, bollards, marine fenders and piping manifold. Steel walkways were used to link all the dolphins and quick release hook was installed at each dolphin. The scope also includes piping, fire fighting, mechanical, electrical and instrumentation works.

Black and white oil piping links the existing pipes on the land-side to the new wharf 8. The steel platform on the deck allows the operator easy access to the MOV and loading arms. The oil catchment was constructed to collect any oil spillage back into the oil sump and fiber mat coating was applied to the concrete surface to protect it from corrosion.

project

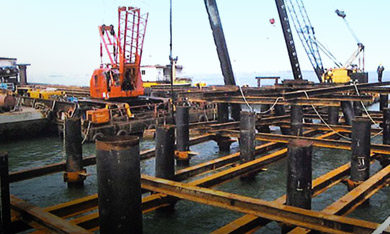

Installation of raker steel pipe piles by “Flying Hammer” in congested location.

project

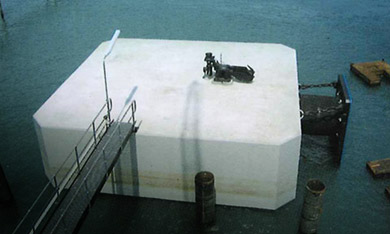

The breasting dolphins were cast in 3 stages. The capstans, quick release hooks and fenders were installed after casting.

project

project

project

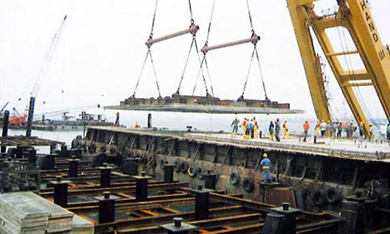

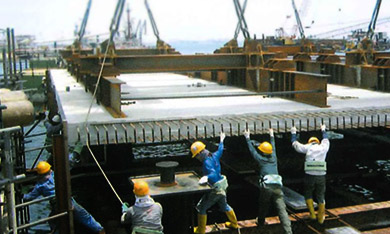

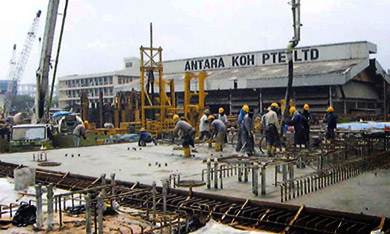

The precast slabs were cast on flat top barges. 400ton floating crane was used to lift and launch the pre-cast slabs onto the prefabricated steel pile heads. The slab connections were cast in-situ after all the slabs were placed in position.
