Project

Design Development and Construction of the New Merlion Pier/Park, Marina Bay.

Completed on September 2002

project

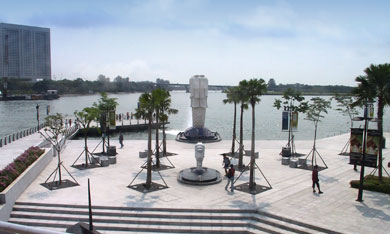

The Design and Build Project covered the relocation of the Merlion and the Cub to a newly reclaimed park adjoining the One Fullerton Promenade.

The new park was seamlessly extended from the existing promenade. The safe handling of the national icon, site limitations, existing structures and the refined end-product necessitated several engineering feats.

The Scope
project

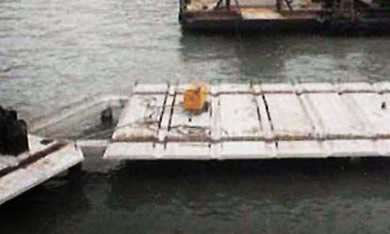

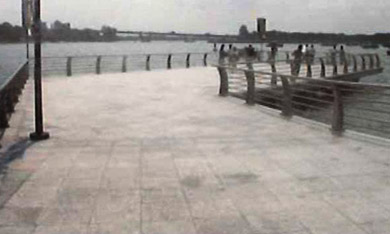

Precast deck comprising of a 70.4m x 6m deck leading to the 22.5m x 10.9m viewing platform

project
Relocation and restoration of the Merlion and cub employing protective engineering techniques.

project

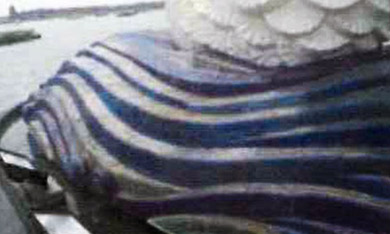

Glass waveform fabricated to sculptured design

project
Cruise landing with a 8m x 3.5m x 1.5m floating platform


Some Features
project

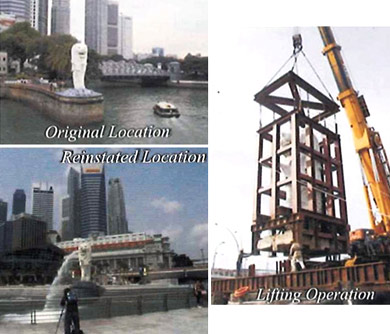

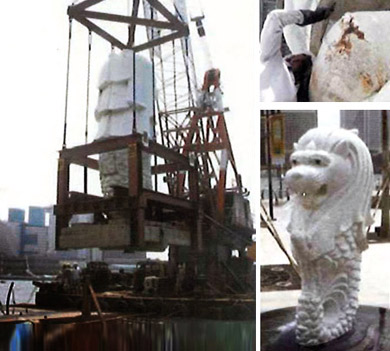

Heavy Lifting
The 70-ton Merlion was lifted with its base underpinned by a 20-ton caged lifting system that was designed for safe barge transport and multiple lifting operations including lifting over a bridge. The Merlion was reinstated intact in its exact prescribed position and orientation.

project

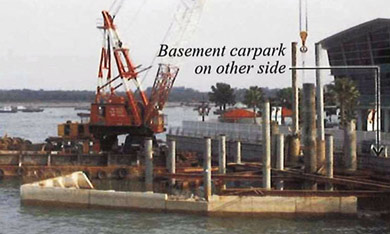

Monitored Piling
As 73 spun piles had to be driven in very close proximity to a seawall with an existing basement carpark on the other side, many precautionary measures were adopted.

project

project

project

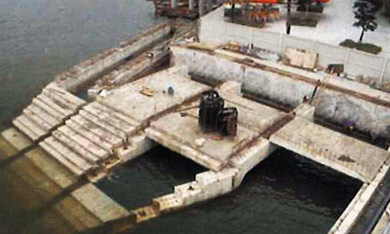

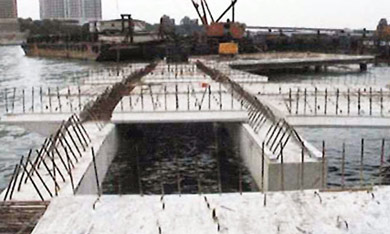

Precast components predominantly used throughout the project

project

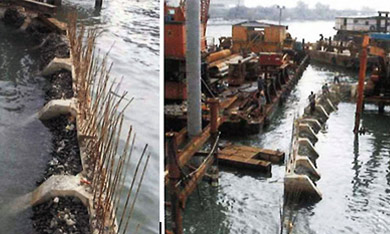

Large L-Blocks
Each 8m high & weighing 70-ton, formed the retaining wall for the reclaimed land.

project

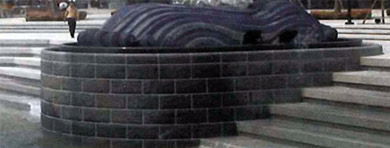

Stoneworks
Included tight fitting curved pieces

project

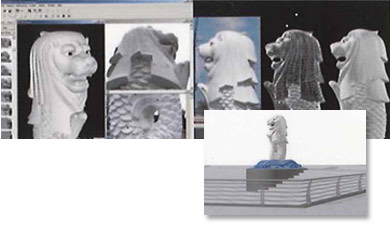

Digital Technologies
Provided the documentation, visualization and analyses
